5 Ton to 550 Ton QD Model Heavy Duty Double Girder Bridge Crane Price

FOB Reference Price:Get Latest Price
$10,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Warehouse bridge crane
Rated Loading Capacity:
5ton~550ton
Model Number:
QD
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Feature:
Bridge Crane
Condition:
New
Rated Lifting Moment:
50~5500KN
Max. Lifting Load:
5ton~550ton
Max. Lifting Height:
6m~24m
Span:
7.5m~31.5m
Place of Origin:
Henan, China
Brand Name:
Pengda
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Up/Down limit switch:
Includes
Overload protection:
Includes
Control model:
Cabin control or remote control
Lifting unit:
Winch type trolley
Duty class(ISO standard):
A5 or A6 or A7
Power source:
3phase 380V 50Hz, or other standards
Painting Color:
Red, yellow or other colors
Crane frame:
Box frame double girder overhead crane
Motors:
Good quality motors
Supply Ability
Supply Ability:
8000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The bridge crane is deliveried by Containers or load by bulk ship.
Port
Tianjin Port
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 50 To be negotiated
 5 ton to 550 ton QD Model Heavy Duty Double Girder Bridge Crane :
Product Description




1. QD model heavy duty double girder bridge crane (overhead crane, EOT crane) is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequenty using.

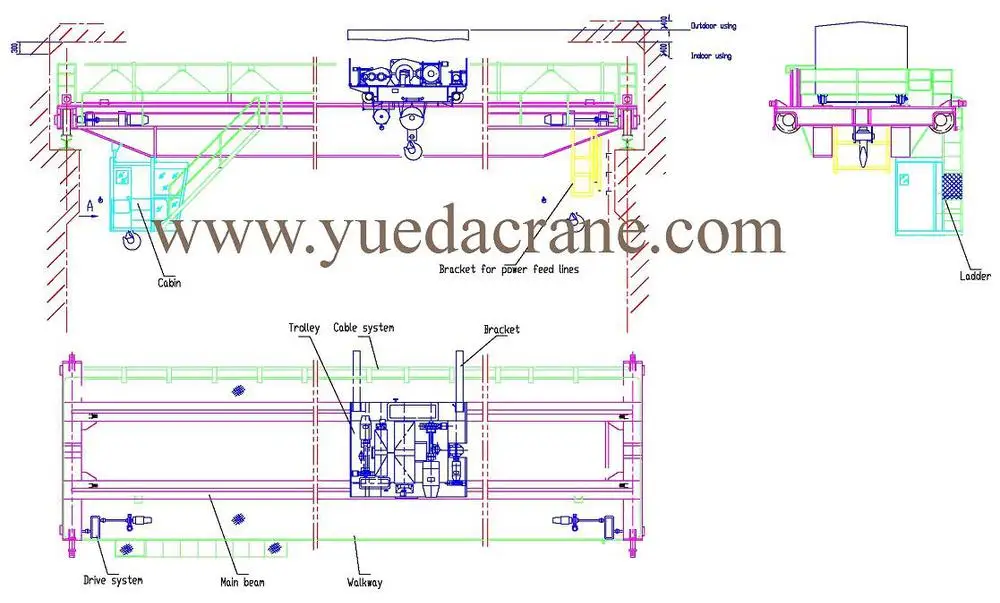

2. This bridge crane (overhead crane, EOT crane) is composed of bridge, travelling mechanisms, trolley, electric equipment. The bridge frame adopts box welded structure, the crane travelling mechanism adopts separate drive withe motor and speed reducer. All mechanism are controlled in driver's cabin. Power supply adopts cable festoon and sliding wire, select one when ordering.

3. The detailed capcaty of this bridge crane as follows: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T, 160/32T, 200/50T, 400/80T, 550/250T.

4.  The duty class are A5~A7(Heavy duty).
5.  The span of bridge crane from 7.5m to 31.5m.
6.  The control model: Cabin control or wire less remote control.




FAQ



 If you interested in this type bridge crane, Pls tell us follow details:

 1. Pls tell us the Max. lifting capacity you need;
 2. Pls tell us the span of bridge crane;
 3. Pls tell us the Max. lifting height you need;
 4. Pls tell us your power source standards;
 5. If you need we supply travelling rails, Pls tell us travelling distance;
 6. Or other special requirements.


The general details of heavy duty overhead crane

Span(rail to rail center)

7.5m~35m

Lifting height

6m, 9m, 12m or other height

Capacity

From 5ton to 500ton

Lifting speed(m/min)

Our standard or special design

Cross travelling speed(m/min)

10, 20, 30, 42

Long travelling speed(m/min)

10, 20, 30, 42, 60, 80

Duty Class

A3/A4/A5/A6/A7

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton, cabin or remote control



Safety features of this bridge crane(overhead crane):



Overload warning and limiter

Up/down limit switch

Low-voltage protection function

Emergency stop function

Hooks with latch

Rubber buffers





The main beam of this bridge crane(overhead crane) :







The lifting unit of this type bridge crane (overhead crane)








Packaging & Shipping



The packing, transport of crane beam of bridge crane (overhead crane) :





 The packing of small parts:
