European standard electric monorail hoist

FOB Reference Price:Get Latest Price
$4,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ND
Maximum Lifting Weight:
20ton
Maximum Lifting Height:
12m
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Pengda
Usage:
Mining Hoist
Power Source:
Electric
Sling Type:
Wire Rope
Lift Speed:
Double speed
Certification:
CE ISO SGS
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Capacity:
1ton~20ton
Frame type:
Low headroom type
Standard:
DIN/FEM
Lifting motor:
ABM brand or Chinese brand
Traveling motor:
SEW brand or Chinese brand
Electrical contactors:
Schneider brand
Frequence inverter:
Schneider brand
Up/Down limit switch:
Includes
Color:
Black
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
High quality plywood case
Port
Tianjin/Qingdao
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 45 To be negotiated
Product Description

Product Application

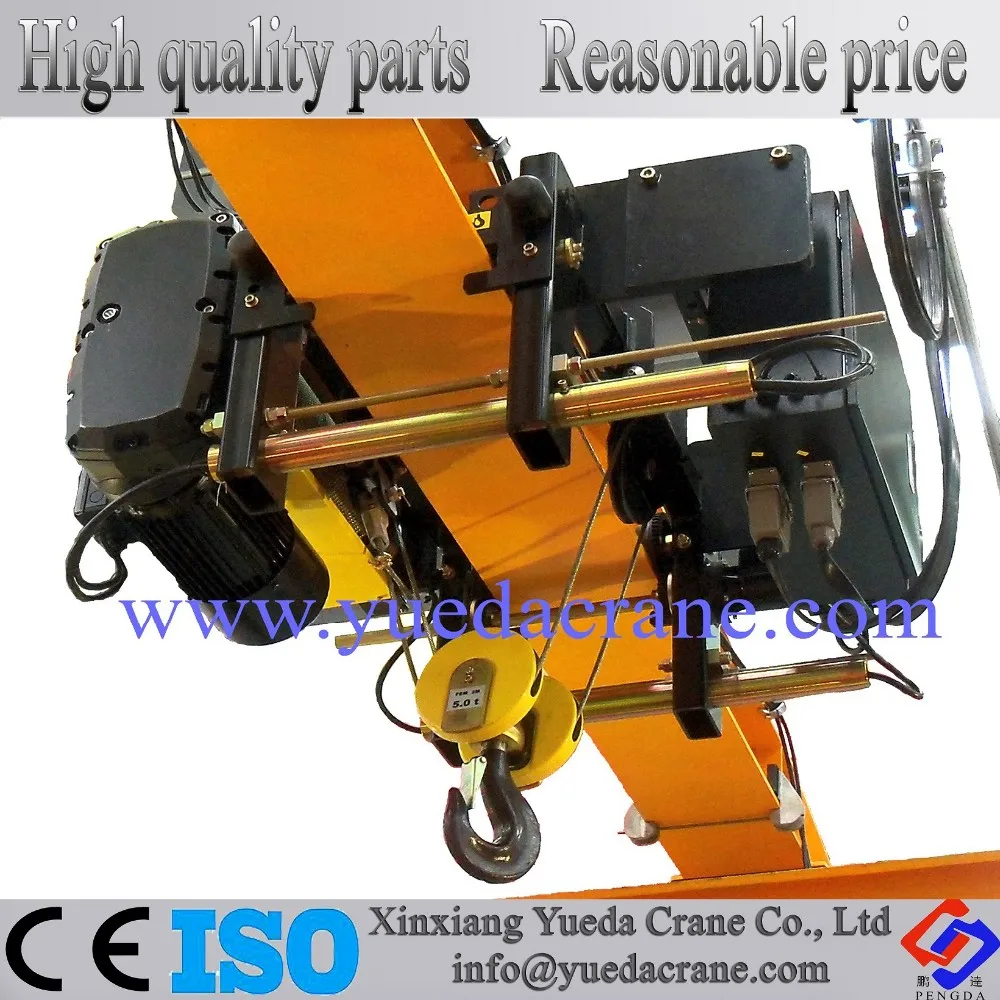

Europe standard wire rope electric hoist

1. Capacity from 1ton to 20ton;
2. Standard lifting height are 6m, 9m and 12m;
3. Lifting speed is double speed or frequency inverter control;
4. Traveling speed is controlled by frequency inverter.
5. Working duty class are FEM 2m, 3m or ISO M5, M6;
6. Working environment temperature: -25~+42 certigrade;
7. Working elevation: within 1000m;
8. Low working noise;

Lifting capacity(Ton)
3, 5, 8, 10, 12.5, 15, 20
Lifting height(m)
6, 9, 12, 18
Lifting speed(m/min)
6/1, 5/0.8, 4/0.66
Travelling speed(m/min)
2~20
Power source standard
380V~440V, 50/60Hz, 3-phease
Duty class
M5(FEM 2m)
Control model
Pendant hancle control or wireless remote control

FAQ: If you need this type electric hoist, please tell us the bellow details:

1) Please tell us the lifting capacity(ton).

2) Please tell us the Max. lifting height you need(m).

3) Please tell me what type material you will lift.

4) Please tell me your power source standard.

5) Please tell me the working environment of your workshop.

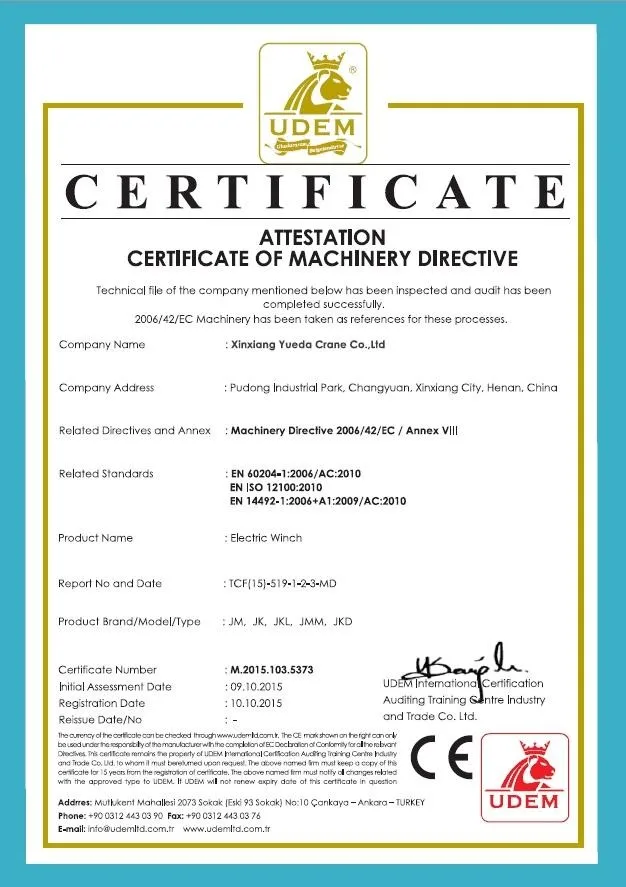

Certifications
Detailed Images

Machine Parts

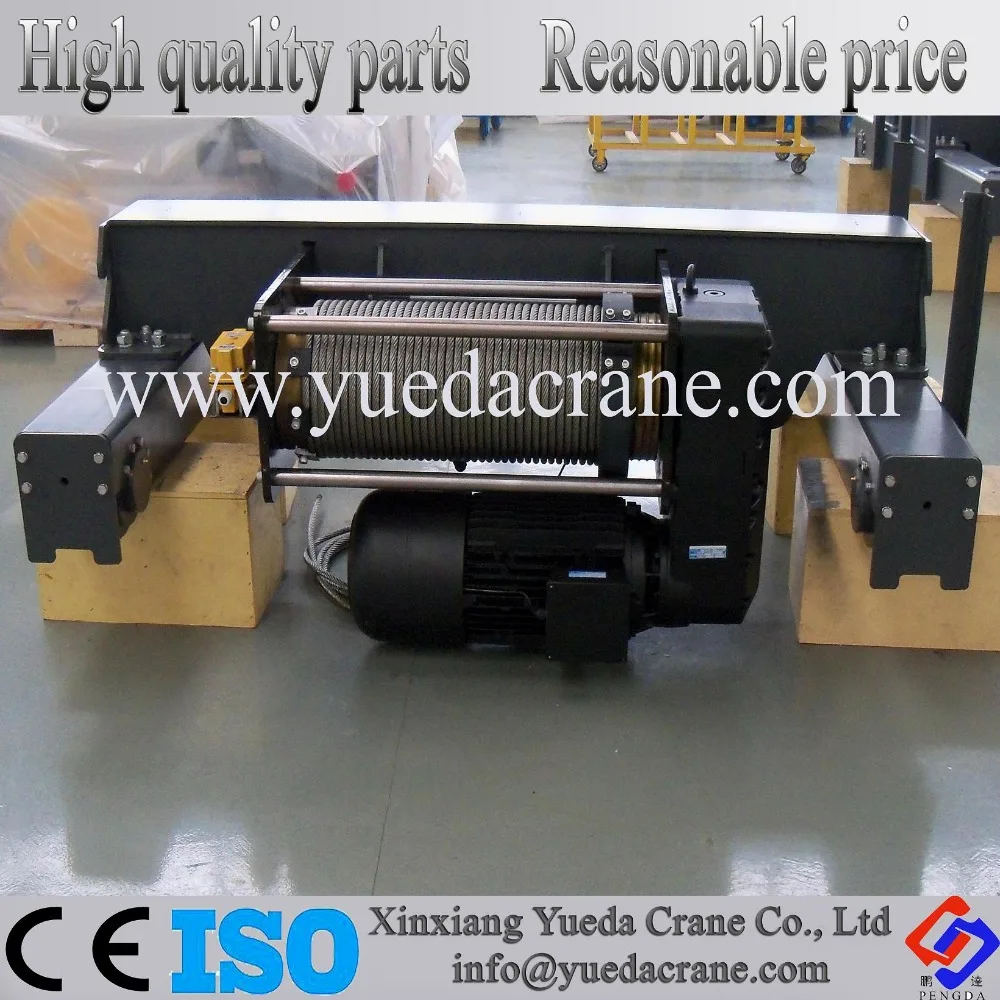

Name: Lifting motor and speed reducer

Brand: ABM

Original: Germany

Protection class: IP54 or IP55
Insurance grade: F

International famous motor and speed reducer, strong driving force, low noise, high economic benefits and long lifetime, the motor is double speed type motor..

Machine Parts

Name: Traveling motor and speed reducer
Brand: SEW
Original: Germany

Protection class: IP54 or IP55
Insurance grade: F
International famous motor and speed reducer, strong driving force, low noise, high economic benefits and long lifetime, the motor is controlled by frequency inverter.

Machine Parts

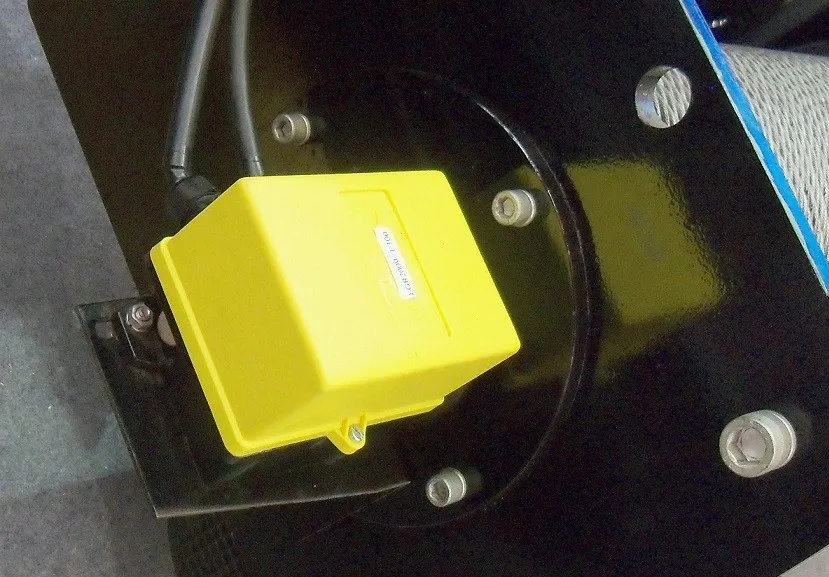

Name: Up/Down limit switch
Original: China
It is used to limit the place of upward and downward motion to protect hoist.

Machine Parts

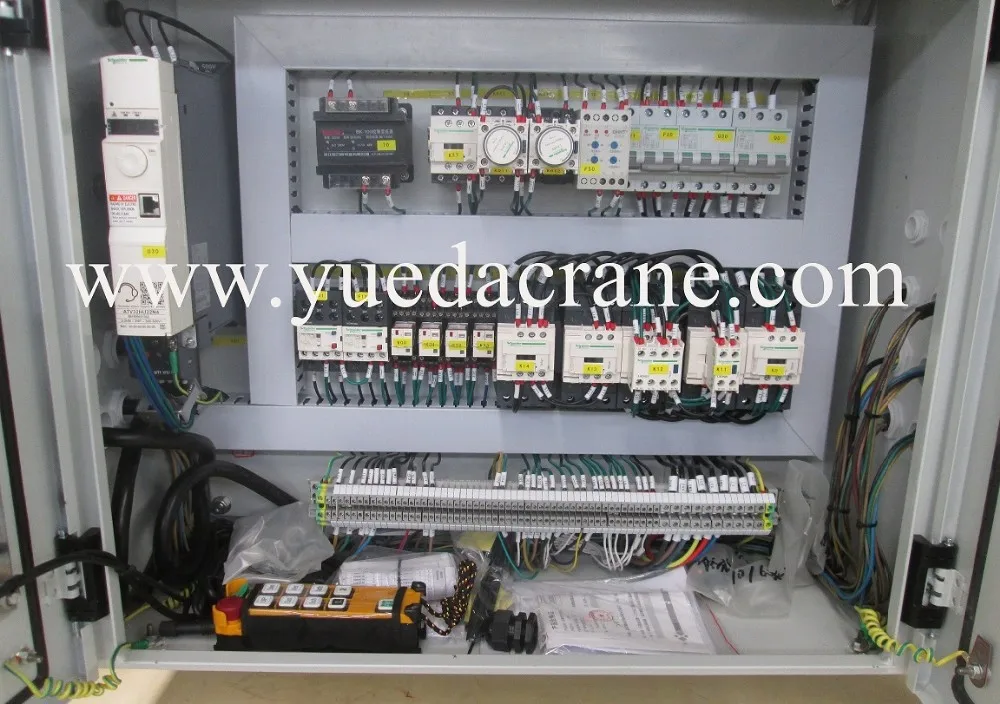

Name: Electrical control box
Original: China
It is used to control all motion of hoist, the electrical contactors and frequency inverters are Schneider brand..

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Material
High quality plywood case
Loading way
Container



Packaging Details

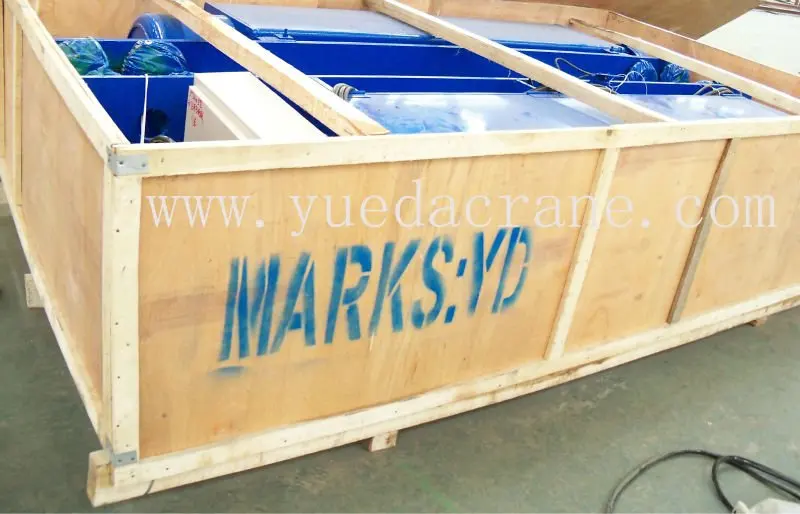

The whole hoist body is packaged in high quality plywood case.
